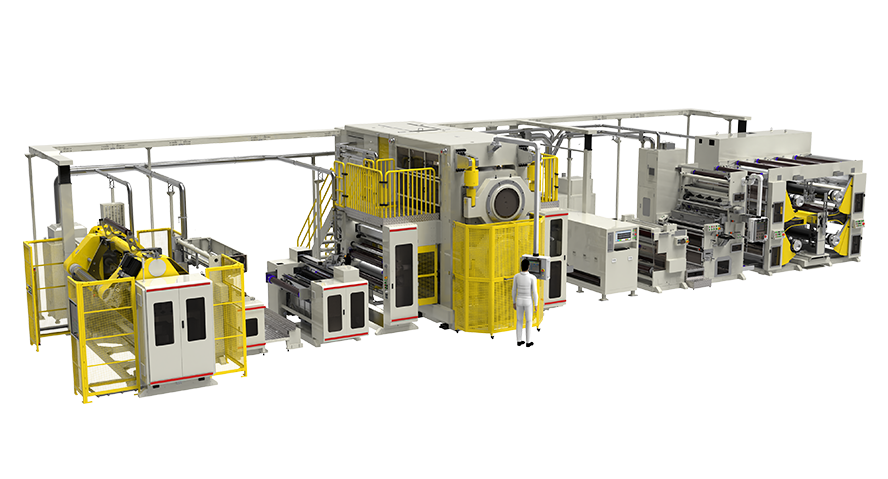

Calendering and Slitting Integrated Machine
Roller surface width：
Max.1.8m
Production speed:
120m/min
The machine supports automatic rewinding and unwinding with high-speed roller cleaning. It can achieve speeds up to 120m/min and has a maximum roller width of 1500mm, ideal for battery calendering machine and slitting integrated machine processes.
Equipment Parameters
| Item | 850Series | 950Series | 1050Series | 1200Series | 1500Series | 1800Series |
|---|---|---|---|---|---|---|
Roller Width（mm） | 850 | 950 | 1050 | 1200 | 1500 | 1800 |
| Electrode Width（mm） | Max.750 | Max.850 | Max.950 | Max.1100 | Max.1400 | Max.1700 |
| Production Speed（m/min） | Max.120 | |||||
Calendering Thickness Accuracy (um） | ±1.5 | |||||
Slitting Width Accuracy （mm） | ±0.3 | |||||
| Rewinding Alignment （mm） | ±0.5 | |||||
| Correction Accuracy （mm） | ±0.1 | |||||
Related Products
-
Double-layer Coating Machine
The equipment ensures stable and continuous output in the coating process, providing customers with an efficient and stable solution for production.
-
Single-layer Coating Machine
The equipment is suitable for coating both power batteries and digital batteries.
-
Double-layer Super-E Coating Machine
Combined with the A/B side coating design, the outstanding integration and innovative design enable efficient, high-quality, and stable production. This reduces labor, factory space, and overall production costs, while effectively promoting energy-saving and emission-reduction in equipment.
-
Super S-Type Coater
The Super-S series coating machine is a derivative and variant of the Super-E prototype, integrating core standardized units such as the Super-E A-side coating machine, unwinding&
rewinding units, oven, and traction unit, inheriting the Super-E’s exceptional thermal efficiency and energy-saving performance.
