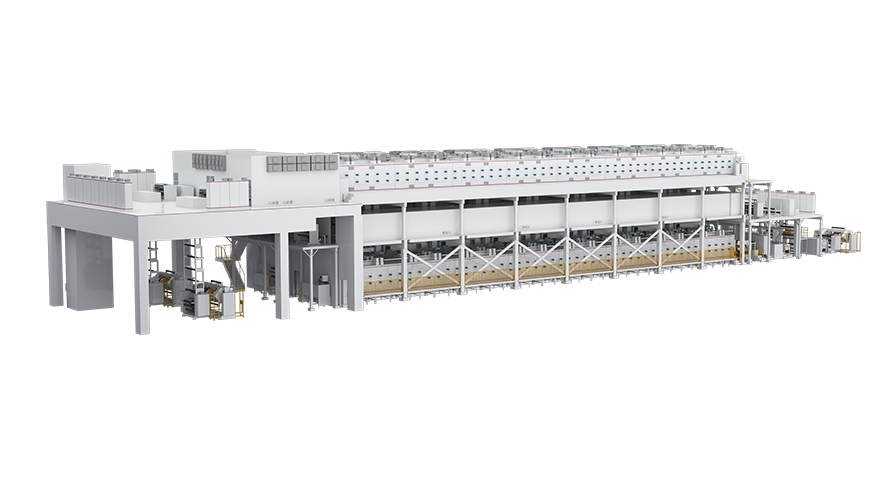

Super S-Type Coater
Roller surface width:
Max.1800mm
Coating Speed:
Max.120m/min
The Super-S series coating machine is a derivative and variant of the Super-E prototype, integrating core standardized units such as the Super-E A-side coating machine, unwinding&rewinding units, oven, and traction unit, inheriting the Super-E’s exceptional thermal efficiency and energy-saving performance. It also adopts a newly designed integrated fold-back oven, enabling fold-back coating without blowing, simplifying equipment layout, reducing initial purchase costs, and further enhancing operational stability and overall cost-effectiveness.
As a flexible coating solution, the Super-S series coating machine can be deeply tailored to match different customers’production space constraints, specific process routes, risk control preferences, and long-term operating cost requirements, offering targeted customized solutions through a series of products.
Equipment Parameters
| Item | 850Series | 1000Series | 1400Series | 1600Series | 1800Series |
|---|---|---|---|---|---|
Roller Width（mm） | 850 | 1000 | 1400 | 1600 | 1800 |
| Coating Width（mm） | Max.700 | Max.800 | Max.1200 | Max.1350 | Mzx.1550 |
| Coating Speed（m/min） | Max.120 | ||||
| Unwinding Roll Diameter（mm） | Max.800 | ||||
Rewinding Roll Diameter（mm） | Max.1200 | ||||
